BLP51 Film Pack Palletizer | Push-Type Palletizer
Low-level Push-Type Palletizer | Film Pack Palletizing Machine

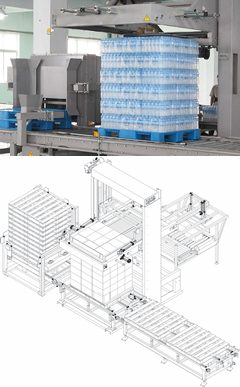

This is a low-level palletizer and used to stack various packs including sealed cartons in order on a pallet. It is an ideal palletizer for shrinkable film wrapped spring bottles. It works automatically and packs can be stacked on a pallet by multiple layers. It employs a touch screen PLC controller and is easy to operate.
Composition:
1. Product row former
Arranges products according to the set pattern and conveys them to the next stage.
2. Product palletizer
Collects the carton rows, lifts them, and stacks them onto the pallet in the preset pattern.
3. Pallet magazine and feeder
Can store 5-8 empty pallets and feeds them to the palletizer based on PLC settings.
4. Loaded pallet outfeed conveyor
Transports fully loaded pallets to a designated location.
Materials:
Frame: SS41 steel
Axes: S45C steel
Controller enclosure: SS41 steel
Guide plate: SS41 steel
Specifications:
Power supply: 3 phases, customized voltage, 6 KW
Air consumption: 500NL/MIN
Air source pressure: 5-6 kgf/cm2
Weight: 4,000 kg
